Needle Punched Woven Filter Fabric High Efficiency Dust Cleaning 100% P84

Daitto Filtration Group Company
Contact Now

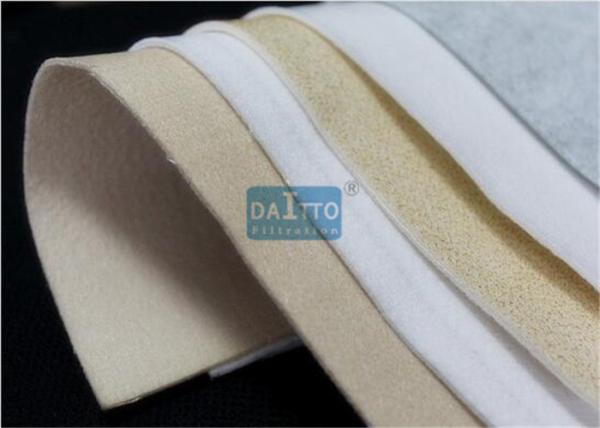

Needle Punched Woven Filter Fabric High Efficiency Dust Cleaning 100% P84

  • 1
  • 2

Brand Name : DAITTO

Model Number : Woven Filter Cloth

Certification : ISO

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000000m per week

Delivery Time : within 15 days

Packaging Details : standard export package

Material : Fiber Composition: 100% P84 fiber Scrim Composition: 100% PTFE spun-yarn scrim Process Method: needle punched

Fiber Composition : Fiber Composition

Scrim Composition : 100% PTFE spun-yarn scrim

Fire resistant : High temperature resistant

Max temperature : 260 degree

Performance : large filtration area and excellent filtration performance

Contact Now

High Efficiency Woven Filter Cloth Dust Cleaning P84

Description:
Fire resistant
High temperature resistant
Working temperature:240 degree
Max temperature: 260 degree
No melting point, yellow color
P84 fiber is with cross section structure (leaf shape), has large filtration area and excellent filtration performance.

Features
Material:
Fiber Composition: 100% P84 fiber
Scrim Composition: 100% PTFE spun-yarn scrim
Process Method: needle punched

Finish Treatment:
Singed, calendered, heat set, water&oil repellent, blending contuctive

Technical Data

500gsm P84 needle punched felt+water&oil repellentConstructionNeedle feltmaterialP84Srim supportP84Felt Area Weight500g/sqmThickness2.1mmMean Air Permeability2-5 m3/m2/min@12.7mmH2OBreaking Strength-MD(warp)800 N/5cmBreaking Strength-CMD(weft)1200 N/5cmBreaking Elongation( N/5cm)-MD(warp)5%Breaking Elongation( N/5cm)-CMD(weft)30%Dry Shrinkage MD(240℃warp)<1%Dry Shrinkage CMD(240℃weft)<1%Operating Temperatures240-260 deg CRecommended Maximum Continuous260 deg CRecommended Maximum Surge280 deg C FinishSinged,calendered,heatset,water&oil repellent

FAQ:
Q: Are you trading company or manufacturer ?

A: Yes, we are the manufacturer with continuous and improved R & D, production, sales and service supply.
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge if the value is not big, but the courier charge will be on your side.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shipment. ( Mainly accept Paypal, West Union and T/T)


Shanghai Daitto Filtration is one of China Filter Cloth manufacturers, factory and supplies, is making and supplying China polyester filter cloth, nomex aramid filter cloth, pps dust collector filter cloth, p84 dust collector filter cloth, ptfe filter cloth, fiberglass filter cloth, acrylic filter cloth, ptfe laminated filter cloth, high temperature dust collector filter bags with good quality and good prices.
